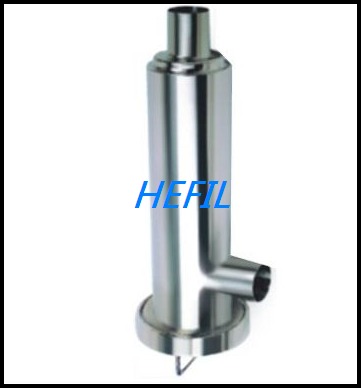

The Wo benefits of high quality stainless steel series of filters
Material: Stainless steel 304,316,304 L, 316L, 409L, 202,321, carbon steel, low alloy steel, alloy steel wall thickness the: SCH5S-SCH160S
Suitable temperature: -20 ~ 232 ¡ã C
Suitable medium: water, oil, gas and some corrosive liquid
Features: beautiful appearance, smooth surface, acid and alkali, anti-corrosion, texture performance
Finish: internal and external mirror finish Ra ¡Ü 0 8¦Ìmm the inner wall of mechanical polishing and electropolishing Ra ¡Ü 2¦Ìmm, the outer surface of cast light or matt.
Purposes: products within and outside the high-end finishing equipment to reach the surface precision requirements;
The stainless steel filter product is suitable for stainless steel piping systems for dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial areas
...
- ===Common specifications===
Size | A | B | D5 | L1 | L2 |
DN25 | 305.0 | 50.5 | 95.0 | 60.0 | 70.0 |
DN32 | 305.0 | 50.5 | 110.0 | 60.0 | 70.0 |
DN40 | 305.0 | 50.5 | 110.0 | 80.0 | 70.0 |
DN50 | 405.0 | 64.0 | 110.0 | 100.0 | 72.0 |
DN55 | 503.0 | 91.0 | 127.0 | 120.0 | 85.0 |
DN80 | 561.0 | 106.0 | 148.0 | 140.0 | 96.0 |
DN100 | 662.0 | 119.0 | 178.0 | 160.0 | 117.0 |
Tags: Filter products
