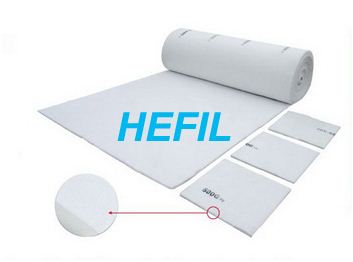

HCF Ceiling Filter
ape. It has advantages of low cost and long service life
¡ôUsing different melting point of exterior and interior of the fiber,
thick and thin fibers was fused together by hot-melt fibers
¡ôThere are full-viscous (spraying glue with three-dimensional treatment),
semi-viscous (spraying glue with surface treatment) and non-viscous
(no glue) filter to choose from
¡ôCan be with galvanized steel or aluminum alloy frame and also
expanded metal on the exhaust side, to effectively prevent deformation
of the separator under high-speed airflow
===Application===
¡ôSuitable for the air supply system at top of the spraying-baking booth
in painting factory to safeguard a high degree of cleanliness and
air-distribution uniformity. Trapping small dust particles and preventing
pollution of paint.
- ===Common specifications===
Model | HCF-600G |
Common Size | 22mmT¡Á1.6m¡Á20m22mmT¡Á2m¡Á20m |
Ingredient | Polyester |
Gram Weight | 600g/m2 |
Capacity of Dust Arrestment | 400g/m2 |
Norm Velocity | 0.26m/s |
Heat Resistance | 120oC |
Fire-protection Rating | Class F1 DIN53438 |
Average Trapping Efficiency | 97~99% |
Initial Pressure Drop | 26Pa |
Final Pressure Drop | 400Pa |
HEFIL makes various other models of HCF filter not listed the above table. Please consult with us if you need.
