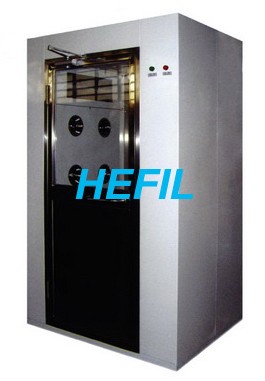

HAS= Air Shower
===Features===¡ôOuter casing is made of high-quality cold-rolled steel plate treated
by electrostatic plastic spray, floor plate is made of stainless steel
sheet
¡ôUsing two-speed air fans with high pressure and airflow
¡ôContaining high-quality mini-pleat HEPA panel filter
¡ôStainless steel nozzles, exiting velocity ¡Ý25m/s
¡ôEquipped with infrared sensors
¡ôSingle swinging door made of stainless steel, equipped German-made
OUBAO door closer
¡ôProgrammable logic control system is made use of imported electrical
components, with sensing of automatic blow, blowing time (0~99s
adjustable) by LED display
===Application===
¡ôHAS air shower series is clean workshop and small fabricated
clean-room equipment, can be use for blowing off the dust attached to
the surface of the staff entering the clean room and the objects brought
into. At the same time, air shower also plays a role of the air brake
to prevent access of unclean air to clean area. It is an effective
equipment for personal purification and prevention of outdoor air
polluting clean the area.
- ===Common specifications===
| Model | HAS-1A | HAS-1B | HAS-2A | HAS-2B |
| Type | 1-man, 2-side blowing | 1-man, 1-side blowing | 2-man, 2-side blowing | 2-man, 1-side blowing |
| HEPA Efficiency | ¡Ý99.9%@0.5¦Ìm | |||
| Shower Time | 0~99s (Adjustable) | |||
| Exiting Velocity | ¡Ý25m/s | |||
| Nozzle Diameter, Qty | ¦µ38mm, 16pcs | ¦µ38mm, 8pcs | ¦µ38mm, 32pcs | ¦µ38mm, 16pcs |
| Power Supply | AC, 3§¶-380V/50Hz | |||
| Power Dissipation | ¡Ü800W | ¡Ü400W | ¡Ü1600W | ¡Ü800W |
| External Dimensions (W¡ÁD¡ÁH) (mm) | 1300¡Á1000¡Á2150 | 1100¡Á900¡Á2150 | 1300¡Á2000¡Á2150 | 1100¡Á1800¡Á2150 |
| Shower Area (W¡ÁD¡ÁH) (mm) | 800¡Á920¡Á2000 | 800¡Á820¡Á2000 | 800¡Á1920¡Á2000 | 800¡Á1720¡Á2000 |
| Weight | ~400kg | ~350kg | ~700kg | ~600kg |
| HEPA Outfit | 610¡Á610¡Á70 (mm) 2pcs | 610¡Á610¡Á70 (mm) 1pcs | 610¡Á610¡Á70 (mm) 4pcs | 610¡Á610¡Á70 (mm) 2pcs |
HEFIL makes various other models of HAS air shower not listed the above table. Please consult with us if you need.
