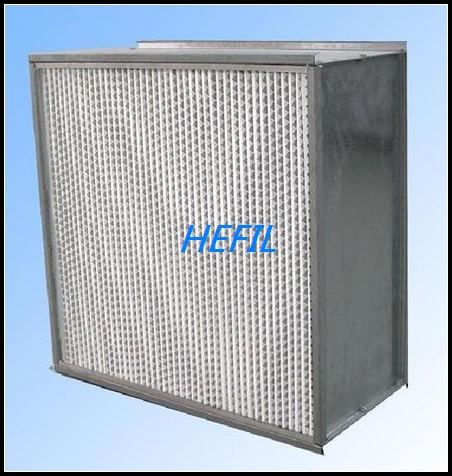

The Wo benefits high efficiency filter

Manufacturer of high efficiency filter partition design, corrugated partitions can accurately maintain the spacing of folds, with minimum resistance, maximize the use of media. Filter filter on both sides to form a wedge fold 180 pleated folding, bending the filter prescribe indentation, making the division the end of the opening into the wedge box pleated layer, wedge box folds can prevent filter damage. In a corrosive environment, you can use vinyl bulkhead plating capture 0 the 3um particles the efficiency of 9999%.

n Material:

 Filter media: H13-H14 glass fiber filter paper;

 Filtration efficiency: H13-H14, H13 99 97-99 99% @ 0 3μm, H14 99 995-99 999% @ 0 3μm (of MPPS);

 Frame material: the profile box, aluminum folding frame, galvanized steel frame, stainless steel frame, wooden frame;

  Separated material: plastic sheet of paper or aluminum foil;

 Sealing strip: chloroprene rubber;

 Filter size: According to the actual requirements of the development, aluminum reference thickness: 120mm, 150mm, 220mm, 295mm

n Application of occasions:

Advanced purification equipment, purification system, the end of the filter components, partial purification equipment and clean rooms.
