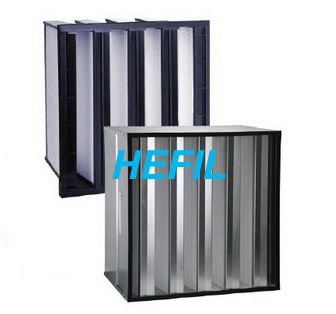

V-bank High Capacity Filter
===Features===¡ôProvide three classifications of filter efficiency: high, sub-high and medium
¡ôAdopt computer-controlled automatic production line for manufacture
of mini pleat filter material
¡ôUsing special glass fiber filter paper as the filter material
¡ôFrame can be made of galvanized steel sheet, stainless steel sheet or
ABS plastic
¡ôEach filter is through rigorous testing
¡ôAdopt international standards sizes
===Application===
¡ôSuitable for air conditioning and air cleaning equipment of high
quantity ventilation, often used to medium filter and terminal filter
in air-conditioning systems.
- ===Common specifications===
| Model | Dimensions | Structural Style | Frame | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) | ||
| W¡ÁH¡ÁD (mm) | F8 | H10 | H13 | |||||
| HMV1212-2VF25 | 287¡Á287¡Á292 | 287 Header 25mm | 2V Plastic/Metal | 4.2 | 800 | 110 | 180 | 260 |
| HMV1220-2VF25 | 287¡Á490¡Á292 | 7.7 | 1200 | |||||
| HMV1224-2VF25 | 287¡Á592¡Á292 | 9.4 | 1600 | |||||
| HMV2012-3VF25 | 490¡Á287¡Á292 | 490 Header 25mm | 3V Plastic/Metal | 6.4 | 1100 | |||
| HMV2020-3VF25 | 490¡Á490¡Á292 | 11.6 | 1900 | |||||
| HMV2024-3VF25 | 490¡Á592¡Á292 | 14.4 | 2400 | |||||
| HMV2412-3VF20/25 | 592¡Á287¡Á292 | 592 Header 20/25mm | 3V Plastic/Metal | 6.4 | 1100 | |||
| HMV2420-3VF20/25 | 592¡Á490¡Á292 | 11.6 | 1900 | |||||
| HMV2424-3VF20/25 | 592¡Á592¡Á292 | 14.4 | 2400 | |||||
| HMV2412-4VF20/25 | 592¡Á287¡Á292 | 4V Plastic/Metal | 8.4 | 1600 | ||||
| HMV2420-4VF20/25 | 592¡Á490¡Á292 | 15.4 | 2500 | |||||
| HMV2424-4VF20/25 | 592¡Á592¡Á292 | 18.8 | 3200 | |||||
| HMV2412-5VF25 | 592¡Á287¡Á292 | 592 Header 25mm | 5V Plastic/Metal | 10.5 | 1800 | |||
| HMV2420-5VF25 | 592¡Á490¡Á292 | 19.0 | 3200 | |||||
| HMV2424-5VF25 | 592¡Á592¡Á292 | 23.5 | 3900 | |||||
| HMV1212-2V | 305¡Á305¡Á292 | 610 Box | 2V Plastic/Metal | 5.4 | 850 | |||
| HMV1224-2V | 305¡Á610¡Á292 | 10.8 | 1700 | |||||
| HMV2412-4V | 610¡Á305¡Á292 | 4V Metal | 11 | 1700 | ||||
| HMV2424-4V | 610¡Á610¡Á292 | 22 | 3400 | |||||
| HMV2412-5V | 610¡Á305¡Á292 | 5V Plastic/Metal | 13.5 | 2100 | ||||
| HMV2424-5V | 610¡Á610¡Á292 | 27 | 4200 | |||||
| HMV2412-6V | 610¡Á305¡Á292 | 6V Metal | 16 | 2500 | ||||
| HMV2424-6V | 610¡Á610¡Á292 | 32 | 5000 | |||||
HEFIL makes various other models of HMV filter not listed the above table. Please consult with us if you need
Tags: Filter
