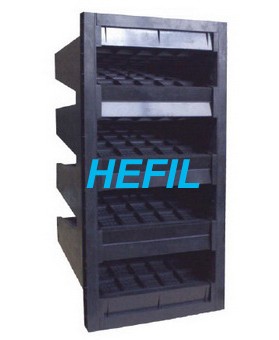

V-bank Activated Charcoal Filter
===Features===¡ôColumnar activated charcoal particles with a special chemical
formula treatment
¡ôHigh adsorption capacity, light weight, easy installation
===Application===
¡ôExclusively designed for central air conditioning and central
ventilation system, eliminate the odor (smell) and harmful gases in air
¡ôA variety of special activated charcoal materials can be provided
according to the actual needs, such as elimination of acid gas, alkaline
gas, formaldehyde, mercury vapor as well as radioactive gases
- ===Common specifications===
| Model | Dimensions | Structural Style | Charcoal Content | Filter Weight | Pressure Drop @ Air Flow |
| W¡ÁH¡ÁD (mm) | |||||
| HACH2412-4V | 592¡Á287¡Á292 | 4V ABS Frame Header 25mm | 4.5~5.0 kg | 8.0~8.5 kg | 230Pa @1800m3/h |
HEFIL makes various other models of HACH filter not listed the above table. Please consult with us if you need.
