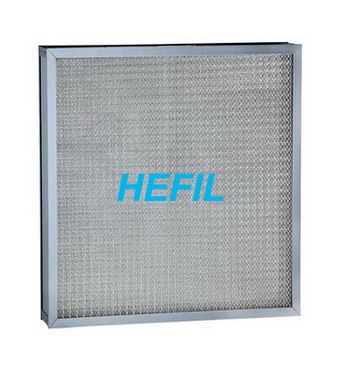

HWM All Metal Washable Filter
===Features===
¡ôAluminum frame structure, reducing the frequency of cleaning and
maintenance of the filter
¡ôMulti-layer corrugated aluminum mesh, low initial resistance, high
dust holding capacity and long service life
¡ôLight weight and compact, easy to install
¡ôCan use compressed air or cleaning fluid to wash repeatedly
¡ôGreatly reduce the risk of fire
¡ôGood heat dissipation, extend the life of the fan motor
===Application===
¡ôSuitable as pre-filter in ventilation systems of office buildings,
conference rooms, hospitals, shopping malls, recreation centers,
airports and other huge civil architecture, as well as general factories
and clean rooms.
- ===Common specifications===
| Model | Dimensions | Face Velocity (m/s) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W¡ÁL¡ÁD (mm) | ||||
| HWM-20¡Á10¡Á2 | 492¡Á238¡Á46 | 2.5 | 1050 | 15 |
| HWM-20¡Á16¡Á2 | 492¡Á390¡Á46 | 1720 | ||
| HWM-20¡Á20¡Á2 | 492¡Á492¡Á46 | 2170 | ||
| HWM-24¡Á24¡Á2 | 594¡Á594¡Á46 | 3170 | ||
| HWM-25¡Á16¡Á2 | 619¡Á390¡Á46 | 2170 | ||
| HWM-25¡Á20¡Á2 | 619¡Á492¡Á46 | 2740 |
HEFIL makes various other models of HWM filter not listed the above table. Please consult with us if you need.
