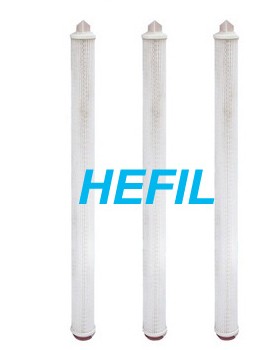

The HCPT polyester folded filter
=== Performance characteristics ===
Using a single or multi-layer polyester fiber filter material folded filter material, the core columns, cover the overall integration and good sealing
Filter area, a wide range of filtration precision, low differential pressure, flux and pollutant carrying a large amount of long service life
Three widely used, cheap
=== Should use ===
HCPT polyester folding filter chemical agents, the plating liquid filtration, solvent and pharmaceutical pre-filtration, filtration of food and beverage, industrial water purification
- ===Common specifications===
| 過濾精度(du) | 雙層 | 0.22μm, 0.45μm, 1μm | 水流(liu)量(liang)-壓力差(cha)特性 (10"濾芯) |
| 單層 | 5μm, 10μm, 20μm, 30μm, 50μm |
| |
| 濾芯長度(du) | 10", 20", 30", 40" | ||
| 濾芯直徑 | Φ69mm | ||
| 過濾面積(ji)/10"長度 | 0.5m2 | ||
| 最高工作溫(wen)度 | 45oC (壓差(cha)0.12MPa時) | ||
| 最(zui)高工(gong)作(zuo)壓力 | 1.0MPa@25oC | ||
| 正(zheng)向耐壓差 | 0.4MPa@25oC | ||
| 反向耐(nai)壓差 | 0.05MPa@25oC | ||
| 接口型式 | 222插入(ru)式(shi), 226卡入(ru)式, 平面壓入式 | ||
| O形密封圈材料 | 硅橡膠, 氟橡膠, 乙丙(bing)橡膠(jiao) | ||
A case of specifications, structural change, the latest data provided by the Company shall prevail
Two companies to accept the order of the non-sheet specifications of filter products
