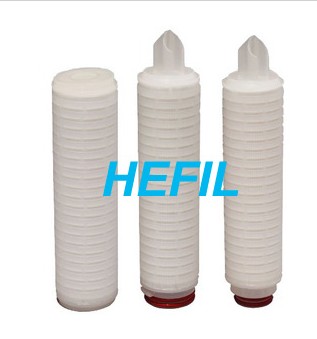

HCNL nylon microporous membrane folded filter
=== Performance characteristics ===
◆ nylon 6 microporous membrane and imported non-woven or mesh support layer folded
◆ the outer tube of the filter, the core columns, end caps are polypropylene, heat welding technology to seal molding, no adhesive, non-polluting, non-fiber shedding
◆ hydrophilic membrane, pore size distribution, filtering accuracy, the flux
The chemical compatibility, and wide applicability
◆ the performance meets the requirements of the FDA
◆ Each filter integrity testing, and by the high purity water rinse
=== Application ===
◆ pharmaceutical industry a variety of liquid filtration, filtration of drinking water, beverages, wines and spirits in the food industry, chemical industry a variety of solvent filtration, high purity water filtration for the electronics industry
- ===Common specifications===
過(guo)濾精度 | 0.1μm, 0.22μm, 0.45μm, 0.65μm | 水流量-壓(ya)力(li)差(cha)特性 (10"濾(lv)芯) |
濾芯長度 | 10", 20", 30", 40" |
|
濾芯直徑 | Φ69mm | |
過濾(lv)面積/10"長(chang)度(du) | 0.6m2 | |
最高工作(zuo)溫度 | 60oC (壓(ya)差0.12MPa時) | |
最高(gao)工作壓力 | 1.6MPa@25oC | |
正向(xiang)耐壓(ya)差 | 0.4MPa@25oC | |
反向耐壓差 | 0.3MPa@25oC | |
蒸汽滅菌 | 121oC, 每次30min | |
接口型式 | 222插入式, 226卡入式(shi), 平(ping)面(mian)壓入(ru)式(shi) | |
O形密封圈材料(liao) | 硅橡膠 |
1、若遇規(gui)格、結構變更,以本公司提供的最新數據為準
2、本公司接受非表上規格過濾器產品的訂貨。
