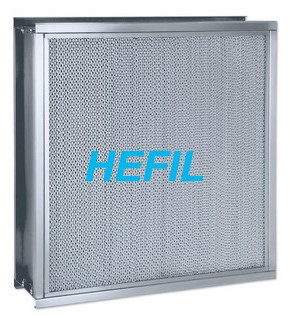

Temperature Resistance Filter
===Features===¡ôThere are all kinds of H10~H14 efficiency standards to adapt to
different requirements
¡ôStainless steel frame with special high temperature sealant,
operating temperature can reach 250oC or 319oC
¡ôAdopt special folding machine for manufacturing
¡ôUsing special glass fiber filter paper as the filter material
¡ôUsing special aluminum foil as separator
¡ôEach filter is through rigorous testing after anti-evaporation process
===Application===
¡ôSuitable for clean drying oven, clean washing machine, chemical
industry and other high-temperature air purification equipments and
systems.
- ===Common specifications===
| Model | Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) | |||||
| W¡ÁH¡ÁD (mm) | Standard | High Capacity | Standard | High Capacity | H10 | H12 | H13 | H14 | |
| HTR320 | 320¡Á320¡Á220 | 4.1 | 6.1 | 350 | 525 | ¡Ü160 | ¡Ü200 | ¡Ü235 | ¡Ü255 |
| HTR484/10 | 484¡Á484¡Á220 | 9.6 | 14.4 | 1000 | 1500 | ||||
| HTR484/15 | 726¡Á484¡Á220 | 14.6 | 21.9 | 1500 | 2250 | ||||
| HTR484/20 | 968¡Á484¡Á220 | 19.5 | 29.2 | 2000 | 3000 | ||||
| HTR630/05 | 315¡Á630¡Á220 | 8.1 | 12.1 | 750 | 1200 | ||||
| HTR630/10 | 630¡Á630¡Á220 | 16.5 | 24.7 | 1500 | 2250 | ||||
| HTR630/15 | 945¡Á630¡Á220 | 24.9 | 37.3 | 2200 | 3300 | ||||
| HTR630/20 | 1260¡Á630¡Á220 | 33.4 | 50.1 | 3000 | 4500 | ||||
| HTR610/03 | 305¡Á305¡Á150 | 2.4 | 3.6 | 250 | 375 | ||||
| HTR610/05 | 305¡Á610¡Á150 | 5.0 | 7.5 | 500 | 750 | ||||
| HTR610/10 | 610¡Á610¡Á150 | 10.2 | 15.3 | 1000 | 1500 | ||||
| HTR610/15 | 915¡Á610¡Á150 | 15.4 | 23.1 | 1500 | 2250 | ||||
| HTR610/20 | 1220¡Á610¡Á150 | 20.6 | 30.9 | 2000 | 3000 | ||||
| HTR610/05X | 305¡Á610¡Á292 | 10.1 | 15.1 | 1000 | 1500 | ||||
| HTR610/10X | 610¡Á610¡Á292 | 20.9 | 31.3 | 2000 | 3000 | ||||
HEFIL makes various other models of HTR filter not listed the above table. Please consult with us if you need.
