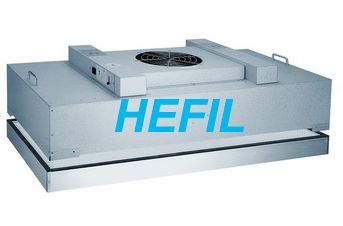

Fan Filter Unit (FFU)
===Features===¡ôOuter casing is made of galvalume, stainless steel, electrolytic sheet,
galvanized sheet iron or aluminum alloy sheet
¡ôStructure of compact, easy to install
¡ôLow power consumption, low running costs
¡ôWith a high-capacity fan, in long-term use under high static pressure,
but can also maintain a low noise
¡ôWide range of applications, fit a variety of clean room from FS209D
Class 10,000 ~ Class 1
===Application===
¡ôFFU system is convenient and flexible, can be applied to any structure
and the level of the clean room. It can also be used in other cleaning
devices, such as: portable clean room, clean bench, clean corridors and
so on.
- ===Common specifications===
| Model | HFU-HA24 | HFU-HA44 | HFU-HA22 | |||
| Module Size (mm) | 1175¡Á575¡Á340 | 1175¡Á1175¡Á340 | 575¡Á575¡Á340 | |||
| Face Velocity (m/s) | Low | High | Low | High | Low | High |
| 0.35 | 0.55 | 0.35 | 0.55 | 0.35 | 0.55 | |
| Noise (dB(A)) | ¡Ü46 | ¡Ü52 | ¡Ü48 | ¡Ü54 | ¡Ü46 | ¡Ü52 |
| Power Supply | AC, 1-§¶220V/50Hz | |||||
| Power Dissipation (W) | 100~120 | 200~245 | 75~90 | |||
| Host Weight (kg) | 25 | 45 | 15 | |||
| HEPA Efficiency | ¡Ý99.99¡«99.999%@0.3¦Ìm | |||||
| HEPA Size (mm) | 1170¡Á570¡Á80/70 | 1170¡Á1170¡Á80/70 | 570¡Á570¡Á80/70 | |||
| HEPA Wight (kg) | 9.5 | 17 | 5.2 | |||
| External Static Pressure (Pa) | 98 | |||||
