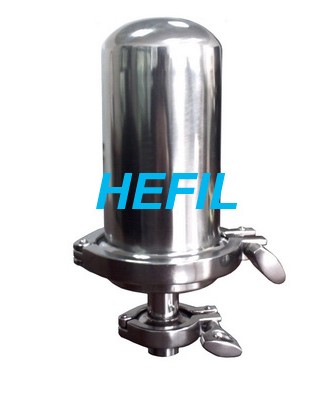

HFC breathing filter
=== Applicable range ===
HFC series of breathing filter is applied to installed in various types of tank, pure water tanks, sterile oven loophole to prevent the suction tank level changes and row air, or sterile oven gas emissions suction by the bacteria or dust pollution in the atmosphere.
- ===Common specifications===
| 殼體制造材料(liao) | 不銹(xiu)鋼304, 316, 316L | ||
| 濾芯接口型(xing)式 | 226 (卡(ka)入式(shi)) | ||
| 管路連接方式 | 卡(ka)箍 | 提供外接接頭 | |
| 法(fa)蘭(lan) | HG20593-1997; PN1.0~1.6MPa | ||
| 螺紋(wen) | 英制(zhi)管螺紋(wen) | ||
| 工作壓(ya)力 | 0.3MPa, 0.8MPa | ||
| 過濾精(jing)度 | 0.01μm, 0.1μm, 0.22μm, 0.45μm | ||
| 過濾效率 | 99.999% | ||
|
|
| ||
===規格型號(hao)和外形尺寸===
| 額定通氣(qi)量(m3/h) | 型號 | 接管(guan) | 外形尺寸 (mm) | 參(can)考(kao)重量(kg) | ||||
| 公稱(cheng)通徑(jing)DN | 管徑(jing)d (mm) | 連(lian)接型(xing)式 | 頸高(gao)h | 殼體外徑D | 總(zong)高H | |||
| 65 | HFC-0105F-25 | 25 | Φ32×2.5 | 法蘭25-1.0 | 50 | Φ102 | 220 | 2.2 |
| HFC-0105C-25 | 卡箍DN25 | 1.5 | ||||||
| HFC-0105S-25 | 外螺紋G1" | 1.2 | ||||||
| 130 | HFC-0110F-40 | 40 | Φ45×2.5 | 法蘭40-1.0 | 350 | 3.7 | ||
| HFC-0110C-40 | 卡(ka)箍DN40 | 2.5 | ||||||
| HFC-0110S-40 | 外螺紋G1?" | 1.9 | ||||||
| 400 | HFC-0310F-50 | 50 | Φ57×3 | 法蘭50-1.0 | 80 | Φ200 | 465 | 14.3 |
| HFC-0310C-50 | 卡箍DN50 | 13.0 | ||||||
| HFC-0310S-50 | 外螺紋(wen)G2" | 12.3 | ||||||
A case of specifications, structural change, the latest data provided by the Company shall prevail
Two companies to accept the order of the non-sheet specifications of filter products
