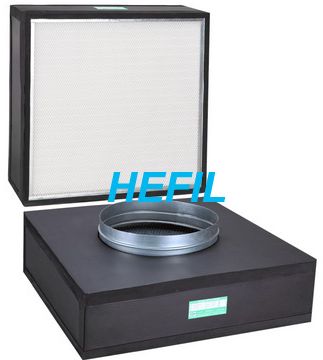

Disposable HEPA Box
===Features===◆Trapping 99.99% or higher of 0.3μm particles
◆High-quality galvanized steel sheet, aluminum alloy extrusions or
stainless steel frame with externally applied fireproof heat-insulator
◆Adopt computer-controlled automatic production line for manufacture
of mini pleat filter material, occupies small space
◆Using special glass fiber filter paper as the filter material, low
resistance and large air volume
◆Compact structure, low-cost investment, easy installation and
maintenance
◆Air outlet with a high-quality aluminum or stainless expanded sheet
has a generous appearance
◆Each HEPA box is through rigorous testing
===Application===
◆Suitable as terminal filtration of air supply system in clean
workshops and clean rooms required the high cleanliness. Availably to
ensure air flow speed and prevent swirl.
- ===Common specifications===
| Model | Box Dimensions (mm) | Inlet Diameter (mm) | Initial Pressure Drop (Pa) @ Air Flow (m3/h) | |||
| HDU-570 | 570×570×150 | Φ250 Φ300 Φ350 | 100@500 | 125@620 | 150@780 | 180@870 |
| HDU-600 | 600×600×150 | 100@550 | 125@690 | 150@870 | 180@970 | |
| HDU-610 | 610×610×150 | 100@570 | 125@715 | 150@900 | 180@1000 | |
| HDU-1170 | 1170×570×150 | 100@1030 | 125@1290 | 150@1630 | 180@1800 | |
| HDU-1200 | 1200×600×150 | 100@1100 | 125@1390 | 150@1760 | 180@1950 | |
| HDU-1210 | 1210×600×150 | 100@1120 | 125@1400 | 150@1780 | 180@1970 | |
| HDU-1220 | 1220×610×150 | 100@1150 | 125@1440 | 150@1820 | 180@2020 | |
HEFIL makes various other models of HDU box not listed the above table. Please consult with us if you need.
Tags: Filter products
