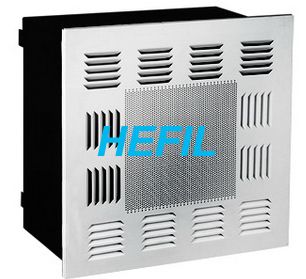

HEPA Diffuser
===Features===¡ôUse of high-quality cold-rolled steel plate manufacturing the box
¡ôThe surface is treated by electrostatic plastic spray
¡ôGenerous appearance, compact structure, easy installation and
maintenance
¡ôThe panel on air outlet can be made of aluminum plate or cold-rolled
steel plate with electrostatic plastic spray, or stainless steel
===Application===
¡ôSuitable for installation of HEPA filter in air-conditioning and
ventilation systems. Availably to ensure air flow speed and prevent
swirl.
- ===Common specifications===
| Model | Rated Air Flow (m3/h) | Mountable HEPA (mm) | Box Dimensions (mm) | Inlet Dimensions (mm) | External Size of Panel (mm) | ||
| Side-inlet | Top-inlet | Side-inlet | Top-inlet | ||||
| HHD320 | 350 | 320¡Á320¡Á220 | 375¡Á375¡Á550 | 375¡Á375¡Á360 | 200¡Á200 | 200¡Á200 | 430¡Á430 |
| HHD484/10 | 1000 | 484¡Á484¡Á220 | 540¡Á540¡Á550 | 540¡Á540¡Á390 | 320¡Á200 | 250¡Á250 | 594¡Á594 |
| HHD484/15 | 1500 | 726¡Á484¡Á220 | 782¡Á540¡Á550 | 782¡Á540¡Á390 | 400¡Á200 | 400¡Á250 | 836¡Á594 |
| HHD484/20 | 2000 | 968¡Á484¡Á220 | 1024¡Á540¡Á550 | 1024¡Á540¡Á390 | 500¡Á200 | 500¡Á250 | 1078¡Á594 |
| HHD610/05 | 500 | 305¡Á610¡Á150 | 665¡Á360¡Á480 | 665¡Á360¡Á320 | 250¡Á200 | 250¡Á200 | 720¡Á415 |
| HHD610/10 | 1000 | 610¡Á610¡Á150 | 665¡Á665¡Á480 | 665¡Á665¡Á320 | 320¡Á250 | 320¡Á250 | 720¡Á720 |
| HHD610/15 | 1500 | 915¡Á610¡Á150 | 970¡Á665¡Á480 | 970¡Á665¡Á320 | 500¡Á250 | 500¡Á250 | 1025¡Á720 |
| HHD610/20 | 2000 | 1219¡Á610¡Á150 | 1275¡Á665¡Á480 | 1275¡Á665¡Á320 | 500¡Á250 | 630¡Á250 | 1330¡Á720 |
| HHD630/05 | 750 | 315¡Á630¡Á220 | 685¡Á370¡Á550 | 685¡Á370¡Á390 | 250¡Á200 | 250¡Á200 | 740¡Á425 |
| HHD630/10 | 1500 | 630¡Á630¡Á220 | 685¡Á685¡Á550 | 685¡Á685¡Á390 | 320¡Á250 | 320¡Á320 | 740¡Á740 |
| HHD630/15 | 2200 | 945¡Á630¡Á220 | 1000¡Á685¡Á550 | 1000¡Á685¡Á390 | 500¡Á250 | 500¡Á320 | 1055¡Á740 |
| HHD630/20 | 3000 | 1260¡Á630¡Á220 | 1315¡Á685¡Á550 | 1315¡Á685¡Á390 | 600¡Á250 | 630¡Á320 | 1370¡Á740 |
HEFIL makes various other models of HHD diffuser not listed the above table. Please consult with us if you need
