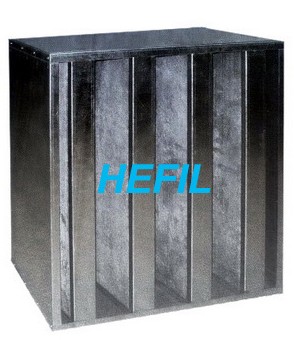

Activated Charcoal Filter Box
===Features===¡ôUsing activated charcoal particles with a special chemical formula
treatment
¡ôReliable performance with high adsorption capacity and removal
efficiency
¡ôEasy installation and maintenance
¡ôFrame can be made of galvanized steel sheet or stainless steel sheet
===Application===
¡ôSuitable for industrial ventilation systems, eliminate the odor
(smell) and harmful gases in air
¡ôA variety of special activated charcoal materials can be provided
according to the actual needs, such as elimination of acid gas,
alkaline gas, formaldehyde, mercury vapor as well as radioactive gases
- ===Common specifications===
| Model | Dimensions | Removal Efficiency (%) | Charcoal Content (kg) | Pressure Drop (Pa) @ Air Flow (m3/h) |
| W¡ÁH¡ÁD (mm) | ||||
| HACB-242412-4V | 610¡Á610¡Á292 | 95 | 18 | 140@3600 |
| HACB-241212-4V | 610¡Á305¡Á292 | 8.5 | 150@1800 | |
| HACB-122412-2V | 305¡Á610¡Á292 | 8.5 | 150@1800 | |
| HACB-121212-2V | 305¡Á305¡Á292 | 4.2 | 160@900 |
HEFIL makes various other models of HACB filter not listed the above table. Please consult with us if you need.
