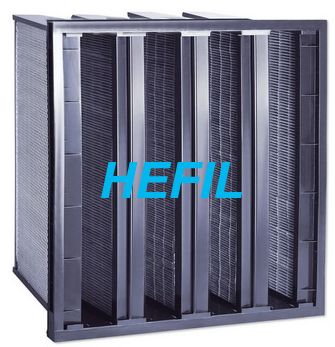

HACV pleat activated carbon filter
===Features===¡ôUsing carbon particles and ultrafine synthetic fibres composite
material, effectively removing harmful substances in the air
¡ôLarger filter area, reliable performance with high adsorption capacity
and removal efficiency
¡ôLight weight, easy installation and maintenance
¡ôFrame is made of ABS, easy to dispose in accordance with
environmental protection requirements
===Application===
¡ôSuitable for central air conditioning and ventilation systems, to
eliminate light concentrations of organic pollutants, sulfur dioxide,
nitrogen dioxide, with the function of removing of dust and gas
contamination at the same time.
- ===Common specifications===
| Model | Dimensions | Structural Style | Frame | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W¡ÁH¡ÁD (mm) | ||||||
| HACV1212-2VF | 287¡Á287¡Á292 | 287 Header | 2V ABS | 2.1 | 800 | 80 |
| HACV1220-2VF | 287¡Á490¡Á292 | 3.8 | 1200 | |||
| HACV1224-2VF | 287¡Á592¡Á292 | 4.7 | 1600 | |||
| HACV2012-3VF | 490¡Á287¡Á292 | 490 Header | 3V ABS | 3.2 | 1100 | |
| HACV2020-3VF | 490¡Á490¡Á292 | 5.8 | 1900 | |||
| HACV2024-3VF | 490¡Á592¡Á292 | 7.2 | 2400 | |||
| HACV2412-3VF | 592¡Á287¡Á292 | 592 Header | 3V ABS | 3.2 | 1100 | |
| HACV2420-3VF | 592¡Á490¡Á292 | 5.8 | 1900 | |||
| HACV2424-3VF | 592¡Á592¡Á292 | 7.2 | 2400 | |||
| HACV2412-4VF | 592¡Á287¡Á292 | 4V ABS | 3.2 | 1600 | ||
| HACV2420-4VF | 592¡Á490¡Á292 | 7.7 | 2500 | |||
| HACV2424-4VF | 592¡Á592¡Á292 | 9.4 | 3200 | |||
| HACV2412-5VF | 592¡Á287¡Á292 | 592 Header | 5V ABS | 5.2 | 1800 | |
| HACV2420-5VF | 592¡Á490¡Á292 | 9.5 | 3200 | |||
| HACV2424-5VF | 592¡Á592¡Á292 | 11.7 | 3900 | |||
| HACV1212-2V | 305¡Á305¡Á292 | 610 Box | 2V ABS | 2.7 | 850 | |
| HACV1224-2V | 305¡Á610¡Á292 | 5.4 | 1700 | |||
| HACV2412-5V | 610¡Á305¡Á292 | 5V ABS | 6.7 | 2100 | ||
| HACV2424-5V | 610¡Á610¡Á292 | 13.5 | 4200 |
HEFIL makes various other models of HACV filter not listed the above table. Please consult with us if you need.
