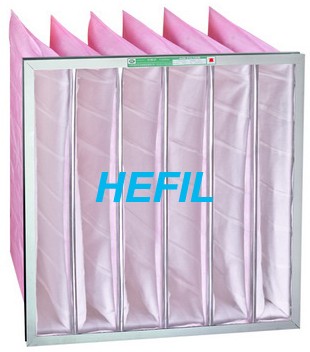

Synthetic Pocket Filter
===Features===¡ôFiltration efficiency rating G4~F8 is available for selection
¡ôUsing special low-resistance and high-throughput composite fabric of
synthetic fiber as the filter material, with a high dust containing
capacity
¡ôThe filter can be with the frame made up of aluminum alloy,
galvanized steel, stainless steel or plastic
===Application===
¡ôSuitable for the electronics, bio-pharmaceutical, machinery,
instrumentation, petrochemical and light industry as general air
purification systems.
- ===Common specifications===
| Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) @ Rated Air Flow (m3/h) | ||||
| W¡ÁH¡ÁD (mm) | G4(30~35%) | F5(40~45%) | F6(60~65%) | F7(80~85%) | F8(90~95%) | |||
| HBM-24¡Á24¡Á24-8P | 592¡Á592¡Á600 | 8 | 6.5 | 27@3400 | 38@3400 | 58@3400 | 68@3400 | 98@3400 |
| HBM-24¡Á24¡Á22-8P | 592¡Á592¡Á558 | 6.1 | 29@3400 | 41@3400 | 62@3400 | 73@3400 | 104@3400 | |
| HBM-24¡Á24¡Á18-8P | 592¡Á592¡Á450 | 4.9 | 36@3400 | 51@3400 | 77@3400 | 91@3400 | 98@2550 | |
| HBM-24¡Á24¡Á15-8P | 592¡Á592¡Á381 | 4.2 | 42@3400 | 59@3400 | 90@3400 | 106@3400 | 114@2550 | |
| HBM-24¡Á24¡Á12-8P | 592¡Á592¡Á300 | 3.4 | 52@3400 | 73@3400 | 111@3400 | 98@2550 | 141@2550 | |
| HBM-24¡Á24¡Á24-6P | 592¡Á592¡Á600 | 6 | 5.0 | 35@3400 | 50@3400 | 76@3400 | 89@3400 | 96@2550 |
| HBM-24¡Á24¡Á22-6P | 592¡Á592¡Á558 | 4.7 | 38@3400 | 53@3400 | 81@3400 | 94@3400 | 102@2550 | |
| HBM-24¡Á24¡Á18-6P | 592¡Á592¡Á450 | 3.8 | 47@3400 | 65@3400 | 100@3400 | 88@2550 | 126@2550 | |
| HBM-24¡Á24¡Á15-6P | 592¡Á592¡Á381 | 3.3 | 54@3400 | 75@3400 | 86@2550 | 101@2550 | 145@2550 | |
| HBM-24¡Á24¡Á12-6P | 592¡Á592¡Á300 | 2.6 | 68@3400 | 95@3400 | 109@2550 | 85@1700 | 123@1700 | |
| HBM-20¡Á24¡Á24-6P | 490¡Á592¡Á600 | 6 | 4.9 | 36@3400 | 51@3400 | 77@3400 | 90@3400 | 98@2550 |
| HBM-20¡Á24¡Á22-6P | 490¡Á592¡Á558 | 4.6 | 38@3400 | 54@3400 | 82@3400 | 96@3400 | 104@2550 | |
| HBM-20¡Á24¡Á18-6P | 490¡Á592¡Á450 | 3.7 | 48@3400 | 67@3400 | 102@3400 | 90@2550 | 130@2550 | |
| HBM-20¡Á24¡Á15-6P | 490¡Á592¡Á381 | 3.2 | 55@3400 | 78@3400 | 89@2550 | 104@2550 | 150@2550 | |
| HBM-20¡Á24¡Á12-6P | 490¡Á592¡Á300 | 2.6 | 68@3400 | 95@3400 | 109@2550 | 85@1700 | 123@1700 | |
| HBM-20¡Á20¡Á24-5P | 490¡Á490¡Á600 | 5 | 3.5 | 38@2550 | 53@2550 | 81@2550 | 95@2550 | 137@2550 |
| HBM-20¡Á20¡Á22-5P | 490¡Á490¡Á558 | 3.3 | 40@2550 | 57@2550 | 86@2550 | 101@2550 | 148@2550 | |
| HBM-20¡Á20¡Á18-5P | 490¡Á490¡Á450 | 2.7 | 49@2550 | 67@2550 | 105@2550 | 82@1700 | 118@1700 | |
| HBM-20¡Á20¡Á15-5P | 490¡Á490¡Á381 | 2.3 | 58@2550 | 81@2550 | 82@1700 | 96@1700 | 139@1700 | |
| HBM-20¡Á20¡Á12-5P | 490¡Á490¡Á300 | 1.8 | 74@2550 | 67@1700 | 105@1700 | 123@1700 | 89@850 | |
| HBM-12¡Á24¡Á24-4P | 287¡Á592¡Á600 | 4 | 3.2 | 27@1700 | 38@1700 | 58@1700 | 68@1700 | 98@1700 |
| HBM-12¡Á24¡Á22-4P | 287¡Á592¡Á558 | 3.0 | 29@1700 | 41@1700 | 62@1700 | 73@1700 | 104@1700 | |
| HBM-12¡Á24¡Á18-4P | 287¡Á592¡Á450 | 2.4 | 36@1700 | 51@1700 | 77@1700 | 91@1700 | 98@1275 | |
| HBM-12¡Á24¡Á15-4P | 287¡Á592¡Á381 | 2.1 | 42@1700 | 59@1700 | 90@1700 | 106@1700 | 114@1275 | |
| HBM-12¡Á24¡Á12-4P | 287¡Á592¡Á300 | 1.7 | 52@1700 | 73@1700 | 111@1700 | 98@1275 | 141@1275 | |
| HBM-12¡Á24¡Á24-3P | 287¡Á592¡Á600 | 3 | 2.5 | 35@1700 | 50@1700 | 76@1700 | 89@1700 | 96@1275 |
| HBM-12¡Á24¡Á22-3P | 287¡Á592¡Á558 | 2.3 | 38@1700 | 53@1700 | 81@1700 | 94@1700 | 102@1275 | |
| HBM-12¡Á24¡Á18-3P | 287¡Á592¡Á450 | 1.9 | 47@1700 | 65@1700 | 100@1700 | 88@1275 | 126@1275 | |
| HBM-12¡Á24¡Á15-3P | 287¡Á592¡Á381 | 1.6 | 54@1700 | 75@1700 | 86@1275 | 91@1275 | 145@1275 | |
| HBM-12¡Á24¡Á12-3P | 287¡Á592¡Á300 | 1.3 | 68@1700 | 95@1700 | 109@1275 | 85@850 | 123@850 | |
HEFIL makes various other models of HBM filter not listed the above table. Please consult with us if you need.
