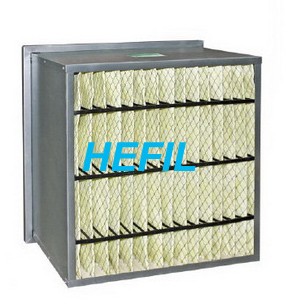

HPM plate efficiency air filter
=== Performance characteristics ===
¡Ý 1 0¦Ìm particle filtration efficiency 65% to 95%
Using a special high-throughput low-resistance chemical fiber cloth filter, dust holding large
3 frame is galvanized steel frame, stainless steel frame, aluminum frame or plastic box
=== Should use ===
HPM plate efficiency air filters for the electronics, bio-pharmaceutical, mechanical instruments and petrochemical light industry, general air purification system
- ===Common specifications===
| Type | Dimensions | Fold the number of |
Filter area (M2)
| The initial pressure drop (Pa) @ Air flow (m3 / h) | |||
| W ¡Á H ¡Á D (mm) | F5(40~45%) | F6(60~65%) | F7(80~85%) | F8(90~95%) | |||
| HPM-12¡Á24¡Á2 | 290¡Á595¡Á46 | 9 | 0.46 | 40@250 | 60@250 | 70@250 | 100@250 |
| HPM-24¡Á24¡Á2 | 595¡Á595¡Á46 | 17 | 0.9 | 40@500 | 60@500 | 70@500 | 100@500 |
| HPM-12¡Á24¡Á3 | 290¡Á595¡Á69 | 9 | 0.7 | 40@400 | 60@400 | 70@400 | 100@400 |
| HPM-24¡Á24¡Á3 | 595¡Á595¡Á69 | 17 | 1.4 | 40@790 | 60@790 | 70@790 | 100@790 |
| HPM-12¡Á24¡Á4 | 290¡Á595¡Á90 | 9 | 0.9 | 40@500 | 60@500 | 70@500 | 100@500 |
| HPM-24¡Á24¡Á4 | 595¡Á595¡Á90 | 17 | 1.8 | 40@1000 | 60@1000 | 70@1000 | 100@1000 |
| HPM-12¡Á24¡Á6 | 290¡Á595¡Á150 | 9 | 1.5 | 40@850 | 60@850 | 70@850 | 100@850 |
| HPM-24¡Á24¡Á6 | 595¡Á595¡Á150 | 17 | 3.0 | 40@1700 | 60@1700 | 70@1700 | 100@1700 |
| HPM-12¡Á24¡Á12 | 290¡Á595¡Á292 | 9 | 3.0 | 40@1700 | 60@1700 | 70@1700 | 100@1700 |
| HPM-24¡Á24¡Á12 | 595¡Á595¡Á292 | 17 | 6.0 | 40@3400 | 60@3400 | 70@3400 | 100@3400 |
A case of specifications, structural change, the latest data provided by the Company shall prevail
Two companies to accept the non-sheet specifications filter order
