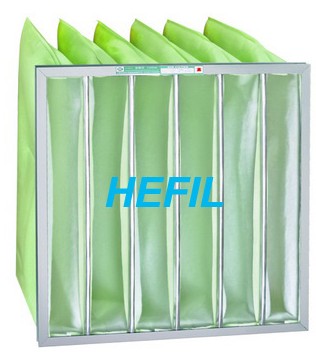

HBP non-woven bag air filter
=== Performance characteristics ===
First, the filtration efficiency grade G3 ~ F6 to choose from
Second, the use of polyester fiber, according to the thickness and density of fiber diameter, a non-fabric, multi-directional gradient sexual rolling pin into the legal system, with high permeability, low pressure loss characteristics of high dust
Third, with galvanized frame, aluminum frame, plastic frame, or stainless steel box
=== Should use ===
HBP non-woven bag air filter as the pre-filtering and room ventilation system of the high efficiency filter, new air filter
- ===Common specifications===
| Type | Dimensions | Number of bags |
Filter area (M2)
| Efficiency specifications of the initial pressure drop (Pa) @ Air flow (m3 / h) | ||
| W ¡Á ¡Á D (mm) | G3 | G4 | F6 | |||
| HBP-24¡Á24¡Á14-6P | 592¡Á592¡Á381 | 6 | 3.3 | 25@2500 40@3600 | 35@2500 60@3600 | 80@2500 |
| HBP-20¡Á24¡Á14-5P | 490¡Á592¡Á381 | 5 | 2.7 | 25@2100 40@3000 | 35@2100 60@3000 | 80@2000 |
| HBP-12¡Á24¡Á14-3P | 287¡Á592¡Á381 | 3 | 1.6 | 25@1250 40@1800 | 35@1250 60@1800 | 80@1250 |
| HBP-24¡Á24¡Á22-6P | 592¡Á592¡Á558 | 6 | 4.6 | 25@3800 40@5400 | 35@3800 60@5400 | 55@2500 85@3600 |
| HBP-20¡Á24¡Á22-5P | 490¡Á592¡Á558 | 5 | 4.1 | 25@3200 40@4500 | 35@3200 60@4500 | 55@2000 85@3000 |
| HBP-12¡Á24¡Á22-3P | 287¡Á592¡Á558 | 3 | 2.3 | 25@1900 40@2700 | 35@1900 60@2700 | 55@1250 85@1800 |
A case of specifications, structural change, the latest data provided by the Company shall prevail
Two companies to accept the non-sheet specifications filter order
...
