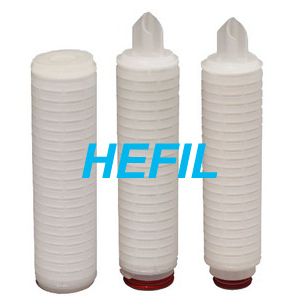

    PTFE Membrane Media Filter

    === Performance characteristics ===
    ◆ Adopt the imported PTFE microporous membrane and imported non-woven or mesh support layer folded
    ◆ filter outside the tube, the core columns, the end caps are enhanced polypropylene material, part of the seal using advanced welding technology forming, without any adhesive
    ◆ strong hydrophobic membrane has a wet or dry conditions can ensure absolute sterilization for gas filtration, 100% retention 0 01μm or more bacteria, the phage
    ◆ has excellent chemical resistance and thermal stability, high temperature resistance, impact resistance, corrosion-resistant
    ◆ flow, pressure, long life
    ◆ Each filter integrity testing
    === Should use ===
    ◆ compressed air, biological reactors, storage tanks, mixing tank, intake and exhaust sterilization filter, the electronics industry purity gases and organic solvents, sterilization filter



    ===Common specifications===

===主要技術參(can)數===

過(guo)濾(lv)精度(du)

氣體

0.01μm, 0.05μm

空氣(qi)流量-壓力(li)差特(te)性 (10"濾芯(xin))

液體(ti)

0.1μm, 0.22μm, 0.45μm

濾芯長度

5", 10", 20", 30", 40"

濾芯直徑

Φ69mm

過(guo)濾面(mian)積/10"長度

0.6m2

最高工作溫度

90oC (壓差(cha)0.2MPa)

最高工作(zuo)壓力

4.0MPa@25oC

正向耐壓差

0.4MPa@25oC

反向耐壓差

0.3MPa@25oC

蒸汽滅菌

125oC, 每次30min

接(jie)口型式

226卡入式

O形密封圈材(cai)料

氟橡膠, 硅(gui)橡膠

1、若遇(yu)規格、結構(gou)變更,以本公司提供(gong)的最新(xin)數據為(wei)準

2、本(ben)公司(si)接受非表上規格(ge)過(guo)濾器產品的訂貨(huo)
