Gas Filter
=== Applicable range ===

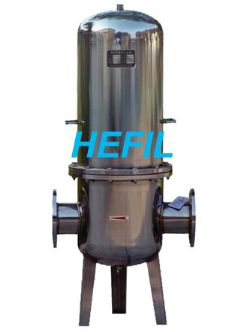

◆ of HFG series filter housings can be installed on various types of folded filter for gas filtration to form a complete set of gas filters. Reasonable design, compact structure, installation, and easy to clean, gas sterilization filter for food, medicine, chemical industry, electronics and other industries.
◆ of HFG filter housing can be mounted pressure gauge, pressure, after the installation of high efficiency folded filter for real-time monitoring of filter used for gas sterilization filter as fine filter.
◆ of HFG filter housing can be installed in effect, supporting the use of sub-efficient folding filter, fine filter, as pre-pre-filter, can extend the life of the fine through the filter, to increase efficiency.
- ===Common specifications===
| 殼(ke)體制造材(cai)料 | 不銹(xiu)鋼304, 316, 316L | ||
| 濾芯接口型式 | 226 (卡入式(shi)) | ||
| 管路連接方式 | 法蘭 | HG20593-1997; PN1.0~1.6MPa | |
| 工作(zuo)壓(ya)力 | 0.3MPa, 0.8MPa | ||
| 最高工作溫度 | 130oC | ||
|
| ||
===規格型(xing)號(hao)和(he)外(wai)形(xing)尺寸===
| 額定(ding) 過濾能力(li) (m3/min) | 殼(ke)體代號(hao) | 濾芯配置 | 進(jin)出(chu)口接(jie)管 | 外形尺寸(cun) (mm) | 參考 重量(kg) | ||||||
| 芯數 | 長(chang)度 | d (mm) | 連接 型式 | D | W | H | h1 | h2 | |||
| 0.5 | HFG-0105-1" | 1芯 | 5" | DN25 (Ф32x3) | 法蘭(lan) | Φ114 | 234 | 434 | - | 250 | 5 |
| 2 | HFG-0110-1" | 10" | 549 | 370 | 6 | ||||||
| 4 | HFG-0120-1" | 20" | 800 | 610 | 8 | ||||||
| 6 | HFG-0310-2" | 3芯 | 10" | DN50 (Ф57x3.5) | Φ184 | 324 | 789 | 300 | 400 | 15 | |
| 10 | HFG-0320-2.5" | 20" | DN65 (Ф76x4) | 1046 | 640 | 23 | |||||
| 15 | HFG-0520-3" | 5芯 | DN80 (Ф89x4) | Φ234 | 414 | 1178 | 380 | 653 | 32 | ||
| 20 | HFG-0520-4" | DN100 (Ф108x4) | 1191 | 385 | 35 | ||||||
| 30 | HFG-0720-4" | 7芯 | Φ274 | 474 | 1251 | 426 | 663 | 42 | |||
| 40 | HFG-0920-5" | 9芯 | DN125 (Ф133x4) | Φ306 | 506 | 1284 | 438 | 698 | 55 | ||
| 60 | HFG-1220-5" | 12芯(xin) | Φ356 | 556 | 1303 | 710 | 64 | ||||
| 80 | HFG-1520-6" | 15芯(xin) | DN150 (Ф159x4.5) | Φ406 | 606 | 1346 | 450 | 85 | |||
| 100 | HFG-1920-6" | 19芯(xin) | Φ456 | 656 | 1375 | 105 | |||||
| 120 | HFG-2520-8" | 25芯 | DN200 (Ф219x6) | Φ506 | 706 | 1501 | 505 | 735 | 125 | ||
| 150 | HFG-3020-8" | 30芯 | Φ556 | 756 | 1514 | 150 | |||||
| 200 | HFG-4020-10" | 40芯(xin) | DN250 (Ф273x6) | Φ706 | 946 | 1669 | 550 | 260 | |||
1、若(ruo)遇規(gui)格、結構變更(geng)，以(yi)本公司(si)提供(gong)的最(zui)新數據為準
2、本公司接受非表上規格過濾器產品的(de)訂貨
